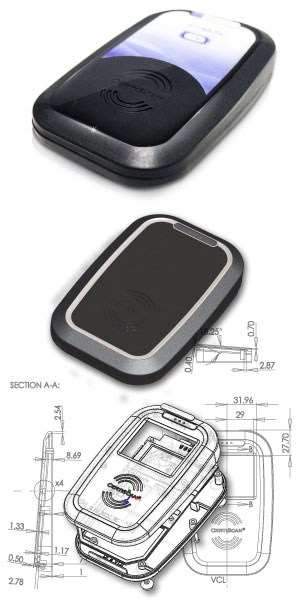

CertiScan Reader (Model: DTR11)
 Read Range: 0 to 30mm (10mm for eCAP™) Antenna: RFID antenna
Reading Time: Under 0.5 seconds
Internal Clock: Standard UTC 5 min per 6 months
Output: 0.1W, FCC certified
Power Supply: Powered USB
Communication Interface: USB
Operating Environment: +5°C to +60°C (+45°F to +150°F)
Dimensions: 15.6cm x 10.2cm x 2.8cm
13.56 MHz Desktop Contactless RFID Reader (for use with Med-ic, Log-ic, eCAP ECM tags)

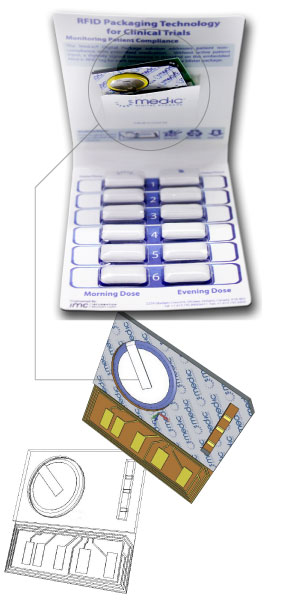

Med-ic Electronic Compliance Monitor (ECM)
Number of Monitored Tablets: Up to 40 per tag (multiple tags per package allowed)
Time Resolution: Stored 1 minute
Time Accuracy: 2 minutes per month
Operating Environment: -5°C to +65°C
Power Source 3V lithium: button battery model CR2016 NOT listed EPA hazardous waste
Lifetime: 1 year from date of tag manufacture plus 1 year from date of packaging. One time use
Dimensions: 40 x 42 x 2 mm Weight under 5 g (1/6 oz)
Heat Sealable, Thin, Flexible, Active, Sensing, RFID Tag (up to 4 Billion unique ID's)

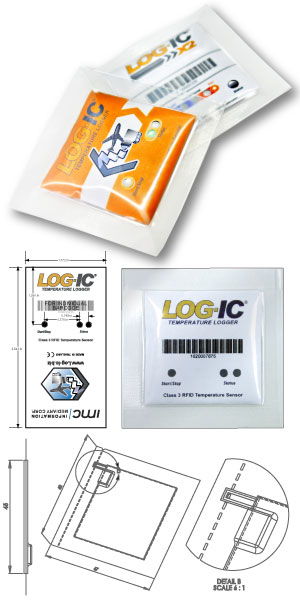

Log-ic Temperature Sensor
 Unique ID: using 13.56 MHz RFID and barcode Life: 2.5 Years Shelf / up to 1 year active
Programmable: Low-cost wireless temperature recorder
On board analysis: Temperature distribution, excursions and statistics including MKT
Reading: 16 million readings
Time Resolution: Stored 1-240 minutes programmable
Time Accuracy: 2 minutes per month
Operating Environment: -40°C to +65°C
Power Source 3V lithium: Button battery model CR2016 NOT listed EPA hazardous waste
Dimensions: 40 x 42 x 2 mm Weight under 5 g (1/6 oz)
Licensed to use as disposable or re-usable tag
FAA Air Cargo Safe
Waterproof (NEMA 6P/IP68 Certified)
EN12830 Class 1 Certified (±0.25°C from -30°C to +30°C)
Visual LED alarm, Start/Stop button
Works with CertiScan RFID wireless reader

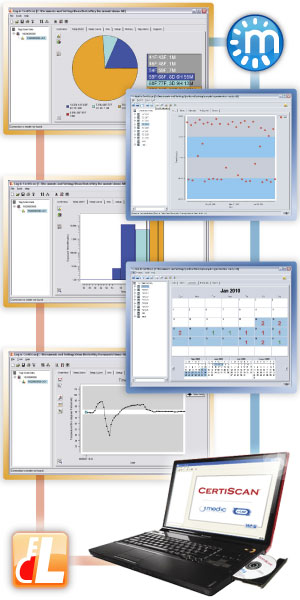

CertiScan Software
 Requirements: Pentium II or higher, 256MB Ram, 50MB free disk space 9-pin serial port or USB to serial when used with reader
OS: Windows XP, Windows Vista, Windows 7
File Format: Secure, tamper-proof, available 21 CFR Part 11 compliant trial data file (*.tdf or *.ldf) Database Max 250,000 patient/medication records per trial data file
Export Data Format: CSV, XML, PDF |
